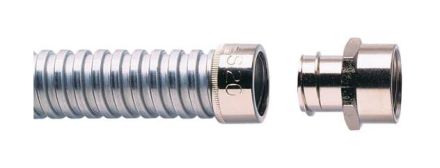

ABB Stotz-Kontakt 7TCA296010R0130 S32/M32/F screw connection

In stock

SKU: 768093

Price on request

€28.81

€0

Overview

S32/M32/F Type F, N dimension: 32, straight screw connection, thread: M32, nickel-plated brass

Property	Value
Nominal diameter:	32 mm
Largest outside diameter of the hose:	32 mm
Smallest inside diameter of the hose:	26.2 mm
Thread connection size:	M32 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	41.5 mm
Total height:	34 mm
Thread length:	15 mm
Rotatable thread:	no
Nominal size in inches:	1 inch
Design:	straight
Construction:	Internal thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	3000 °C
Thread type:	metric
Connection type of the screw connection to the housing:	thread
With earth connection:	no
