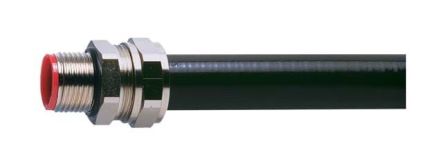

ABB Stotz-Kontakt 7TCA296020R0100 SP16/M16/M screw connection

ABB Stotz-Kontakt 7TCA296020R0100 SP16/M16/M screw connection

In stock

SKU: 768108

Price on request

€18.60

€0

Into a basketIn the basketGo

Overview

Adaptaflex screw connection type M external thread IP65 M16 nickel-plated brass

Property	Value
Nominal diameter:	16 mm
Largest outside diameter of the hose:	16 mm
Smallest inside diameter of the hose:	10.3 mm
Thread connection size:	M16 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	33 mm
Total height:	25.4 mm
Thread length:	12 mm
Rotatable thread:	no
Nominal size in inches:	3/8 inch
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	1500 °C
Thread type:	metric
Connection type of the screw connection to the housing:	thread
With ground connection:	no

Characteristics

One-pieceNo

Total height25.4 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose10.3 mm

Approved in combination with protective hose DIN EN 61386-23No

With earth connectionNo

Approved in combination with protective hose CSANo

HABSP16/M16/M

Minimal order10 pieces

Manufacturer

HAN7TCA296020R0100

GTIN5020963007255

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature1500°C

Overall length33 mm

Thread connection sizeM16x1.5

Thread typeMetric

Thread length12 mm

Nominal diameter16 mm

Nominal size in inches3/8 inch

SurfaceNickel-plated

Housing materialBrass
