ABB Stotz-Kontakt 7TCA296040R0083 SB50/M50/A screw connection

ABB Stotz-Kontakt 7TCA296040R0083 SB50/M50/A screw connection

In stock

SKU: 768098

Price on request

€68.85

€0

Into a basketIn the basketGo

Overview

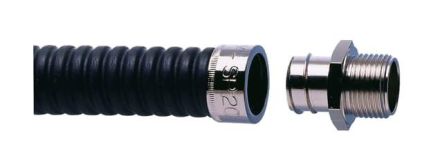

Adaptaflex screw connection type A external thread IP40 M50 nickel-plated brass

Property	Value
Nominal diameter:	50 mm
Largest outside diameter of the hose:	50 mm
Smallest inside diameter of the hose:	45 mm
Thread connection size:	M50 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	41 mm
Total height:	65.5 mm
Thread length:	14 mm
Rotatable thread:	no
Nominal size in inches:	1 1/2 inch
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	3000 °C
Thread type:	other
Connection type of screw connection to the housing:	thread
With earth connection:	no

Characteristics

One-pieceNo

Total height65.5 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose45 mm

Approved in combination with protective hose DIN EN 61386-23No

With earth connectionNo

Approved in combination with protective hose CSANo

HABSB50/M50/A

Minimal order2 pieces

Manufacturer

HAN7TCA296040R0083

GTIN5020963010781

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature3000°C

Overall length41 mm

Thread connection sizeM50x1.5

Thread typeOther

Thread length14 mm

Nominal diameter50 mm

Nominal size in inches1 1/2 inch

SurfaceNickel-plated

Housing materialBrass
