ABB Stotz-Kontakt 7TCA305020R0098 Movion SiLi ABM 3h SÜ F LED emergency light

ABB Stotz-Kontakt 7TCA305020R0098 Movion SiLi ABM 3h SÜ F LED emergency light

In stock

SKU: 838702

Price on request

€177.54

€0

Overview

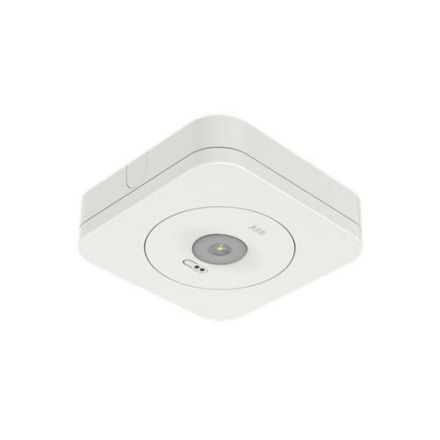

Safety light as LED surface-mounted downlight. Discreet, small safety light made of white plastic (RAL 9003), with optimized illumination of large square surfaces to achieve particularly wide mounting distances. Suitable for very simple, quick assembly and installation.

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	II
Voltage type:	AC
Nominal voltage:	230 V
Color temperature:	5000 K
Length:	151 mm
Width:	151 mm
Height/depth:	41 mm
Max. System performance:	3.19 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	117 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK04
Socket:	other
With remote switch connection:	no
Cover material:	plastic transparent
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Ceiling mounting
Housing material:	plastic
Power supply:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of light sources:	1
Number of Lamp heads:	1
Light distributor:	Focus lens
Rated service life L70/B50 at 25 °C:	81.6 h
Protection class (NEMA):	2
Rated ambient temperature according to IEC 62722-2-1:	5 to 35 °C
Power factor:	0.85
Type of wiring:	suitable for through-wiring
Number of poles:	4
Conductor cross-section:	2.5 mm²
Connection type:	other
With remote control:	no
Replaceable control gear:	yes
Constant luminous flux control:	no
