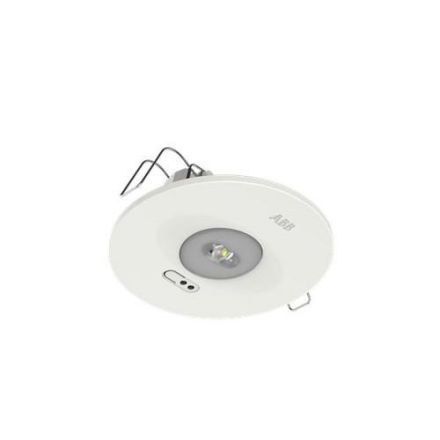

ABB Stotz-Kontakt 7TCA305020R0105 Movion SiLi EBM 3h DALI/SÜ W LED emergency light

ABB Stotz-Kontakt 7TCA305020R0105 Movion SiLi EBM 3h DALI/SÜ W LED emergency light

In stock

SKU: 838709

Price on request

€223.79

€0

Overview

Safety light as a built-in LED downlight. Discreet, small safety light made of white plastic (RAL 9003), with optimized illumination of escape routes to achieve particularly long installation distances. Suitable for very simple, quick assembly and installation.

Property	Value
Housing color:	white
Protection rating (IP):	IP20
Protection class:	II
Voltage type:	AC
Nominal voltage:	230 V
Color temperature:	5000 K
Length:	340 mm
Width:	100 mm
Height/depth:	50 mm
Max. System performance:	3.19 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	108.7 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Socket:	other
With remote switch connection:	no
Installation diameter:	68 mm
Cover material:	plastic transparent
Installation width:	240 mm
Outer diameter:	100 mm
With light source:	yes
Installation length:	48 mm
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Installation
Housing material:	Plastic
Power supply:	decentralized (single battery)
Function:	Escape route lighting
With Pictogram:	no
Suitable for number of light sources:	1
Number of lamp heads:	1
Light distributor:	Focus lens
Rated service life L70/B50 at 25 °C:	81.6 h
Protection class (NEMA):	2
Rated ambient temperature according to IEC 62722-2-1:	5 to 35 °C
Power factor:	0.9
Installation height/depth:	50 mm
Type of Wiring:	suitable for through wiring
Number of poles:	8
Conductor cross-section:	2.5 mm²
Connection type:	other
With remote control:	yes
Replaceable operating device:	yes
Constant luminous flux control:	no

Characteristics

HABMovion SiLi EBM 3h DALI/SÜ W

Manufacturer

HAN7TCA305020R0105

GTIN8713812773414

Connection typeOther

Type of wiringSuitable for through wiring

Replaceable operating deviceYes

Outer diameter100 mm

Rated lifetime L70/B50 at 25 °C81.6 hours

Rated luminous flux according to IEC 62722-2-1108.7lm

Rated ambient temperature according to IEC 62722-2-15 to 35 °C

Operating deviceLED control gear current controlled

Width100 mm

Installation width240 mm

Installation diameter68 mm

Installation height/depth50 mm

Installation length48 mm

Color temperature5000K

VersionOther

FunctionEscape route lighting

Suitable for number of light sources1

Housing colorWhite

Height/Depth50 mm

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section2.5 mm²

LampsLED not replaceable

Light distributorFocus lens

Length340 mm

Max. system performance3.19 W

With remoteYes

With light sourceYes

Mounting typeInstallation

Nominal voltage230V

Number of poles8

IP protection)IP20

Protection class (NEMA)2

Protection classII

Voltage typeAC

Cover materialPlastic transparent

Housing materialPlastic
