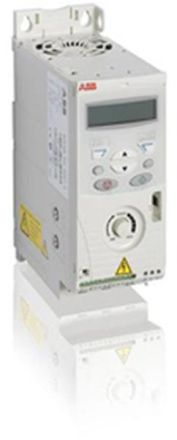

ABB Stotz-Kontakt ACS150-01E-04A7-2 0.75kW 4.7A frequency converter, 68581966

ABB Stotz-Kontakt ACS150-01E-04A7-2 0.75kW 4.7A frequency converter, 68581966

In stock

SKU: 449085

Price on request

€245.12

€0

Overview

Reach a new dimension with the wide power range and extensive features of the ACS150. It is available for 1- and 3-phase power supplies in IP20 protection. Many features such as PID control, built-in brake chopper and EMC filter are standard. The optional FlashDrop tool allows the drive to be configured quickly and easily without mains connection. Options include External EMC filter for 1st/2nd environment, input/output chokes, FlashDrop tool for configuring the frequency converter in 2 seconds without mains connection and NEMA 1 kit.

Property	Value
Protection class (IP):	IP20
Mains frequency:	50/60 Hz
Mains voltage:	240 V
Number of other HW interfaces:	7
Max. Output frequency:	500 Hz
Use in industrial areas permitted:	yes
Height:	239 mm
Width:	70 mm
Depth:	142 mm
Type of converter:	U-converter
Max. output power with linear load at rated output voltage:	0.75 kW
Supports protocol for data highway:	no
4-quadrant operation possible:	no
With optical interface:	no
Supports protocol for LON:	no
Relative symmetrical mains voltage tolerance:	10 %
Supports protocol for AS-Interface Safety at Work:	no
Integrated brake chopper:	yes
Number of input phases:	1
Supports protocol for TCP/IP:	no
Supports protocol for DeviceNet:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	yes
Supports protocol for INTERBUS:	no
Supports protocol for other bus systems:	no
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	no
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Relative symmetrical mains frequency tolerance:	5 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. output power at square load at rated output voltage:	0.75 kW
With PC connection:	yes
Nominal output current I2N:	4.7 A
Max. Output voltage:	240 V
Supports protocol for BACnet:	no
