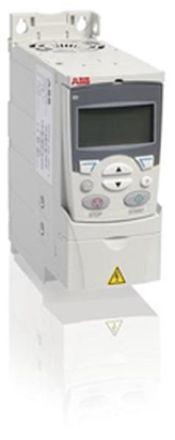

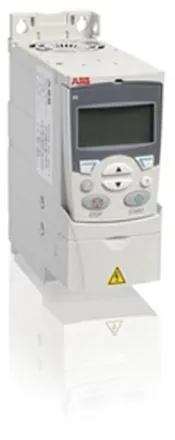

ABB Stotz-Kontakt ACS310-03E-02A1-4 0.55 2.1A frequency converter, 3AUA0000039626

ABB Stotz-Kontakt ACS310-03E-02A1-4 0.55 2.1A frequency converter, 3AUA0000039626

In stock

SKU: 449103

Price on request

€326.58

€0

Overview

The ACS310 is an IP20 rated frequency converter specifically designed to optimize your variable torque applications such as booster pumps and centrifugal fans. Powerful features adapt the performance of the frequency converter to changes in pressure, flow or other external data. This reduces operating costs, increases energy efficiency and reduces CO2 emissions. Other highlights include integrated pump and fan functions such as multi-pump control, pipe cleaning and filling functions and integrated Modbus EIA-485. Optional features include basic and comfort control panels, input/output chokes, relay output extension module, external EMC filter for the 1st environment, FlashDrop tool for configuring the frequency converter in 2 seconds without mains connection and NEMA-1 kit.

Property	Value
Protection class (IP):	IP20
Mains frequency:	50/60 Hz
Mains voltage:	400 V
Number of other HW interfaces:	10
Number of serial HW interfaces RS-485:	1
Max. Output frequency:	500 Hz
Use in industrial areas permitted:	yes
Height:	239 mm
Width:	70 mm
Depth:	161 mm
Type of converter:	U-converter
Max. output power with linear load at rated output voltage:	0.55 kW
Supports protocol for data highway:	no
4-quadrant operation possible:	no
With optical interface:	no
Supports protocol for LON:	no
Relative symmetrical mains voltage tolerance:	10 %
Supports protocol for AS-Interface Safety at Work:	no
Integrated brake chopper:	no
Number of input phases:	3
Supports protocol for TCP/IP:	no
Supports protocol for DeviceNet:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	no
Supports protocol for INTERBUS:	no
Number of HW interfaces serial RS-232:	1
Supports protocol for other bus systems:	no
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	yes
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Relative symmetrical mains frequency tolerance:	5 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	0.55 kW
With PC connection:	yes
Nominal output current I2N:	2.1 A
Max. output voltage:	480 V
Supports protocol for BACnet:	no
