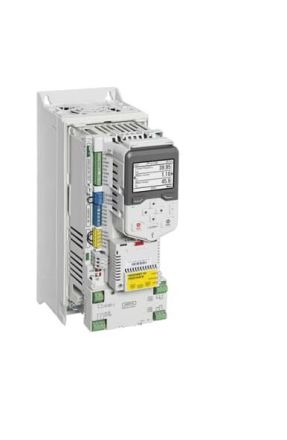

ABB Stotz-Kontakt ACS580-01-062A-4+B frequency converter, 3AUA0000083573

ABB Stotz-Kontakt ACS580-01-062A-4+B frequency converter, 3AUA0000083573

In stock

SKU: 463397

Price on request

€3,520.91

€0

Into a basketIn the basketGo

Overview

Frequency converter ACS580-01-062A-4+B056380-480 V / Pn 30kW / In 62A / IP55with EMC filter Cat. C2 public networks

Property	Value
Protection class (IP):	IP55
Mains frequency:	50/60 Hz
Mains voltage:	400 V
Number of other HW interfaces:	15
Number of serial HW interfaces RS-485:	1
Max. Output frequency:	500 Hz
Use in industrial areas permitted:	yes
Height:	600 mm
Width:	203 mm
Depth:	258 mm
Type of converter:	U-converter
Max. output power with linear load at rated output voltage:	30 kW
Supports protocol for data highway:	no
4-quadrant operation possible:	no
With optical interface:	no
Supports protocol for LON:	no
Relative symmetrical mains voltage tolerance:	10 %
Supports protocol for AS-Interface Safety at Work:	no
Integrated brake chopper:	yes
Number of input phases:	3
Supports protocol for TCP/IP:	yes
Supports protocol for DeviceNet:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for EtherNet/IP:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	yes
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	yes
Supports protocol for INTERBUS:	no
Supports protocol for other bus systems:	no
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	yes
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Relative symmetrical mains frequency tolerance:	5 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	30 kW
Number of HW interfaces USB:	1
With PC connection:	yes
Nominal output current I2N:	62 A
Max. output voltage:	480 V
Supports protocol for BACnet:	no
