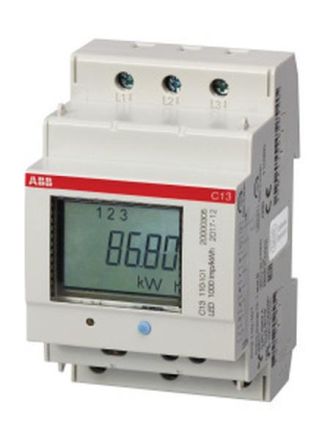

ABB Stotz-Kontakt C13 110-101 MID, C13 110-101 three-phase meter MID steel, 3 phases, direct connection 40A, 2CMA103574R1000

In stock
SKU: 469046
€118.73
Into a basketIn the basketGo

Overview

Single phase electricity meter for measuring single phase networks via a direct connection for currents up to a maximum of 40 A. The meter is calibrated according to MID and approved according to IEC. Display of all important instrumental values. The electricity meter has one output. This can be used either as a pulse output to output the active energy or as an alarm output. Up to 25 alarm values (threshold values with time delay) can be set here. The installation width is 1 DIN module. Suitable accessories such as current transformers, gateways with integrated web server and a KNX interface can be found in our portfolio.

PropertyValue
Width in division units:3
Calibrated:yes
Pole type:four-wire
Meter type:electronic
Display type:digital
Mounting type:REG
Accuracy class:B
Protection class (NEMA):other
Maximum current (Imax):40 A
Nominal voltage (Un) NL:230 to 240 V
Pulse rate:1000 Imp/kWh (kvarh)
Protection class (IP):IP20
Frequency:50 to 60 Hz
Tariff version:Single tariff
Energy type:Active power
Nominal current (In):5 A
Version:Direct measurement
Measurement type load profile:no
EDL40 signature:no
With lock code:no
Pulse type:S0
Nominal voltage (Un) LL:230 to 400 V
Number of digits:6
Suitable for:Reference
Backstop:yes
Approval:Measuring Instruments Directive
Pulse output:electrical
Interface design:without

Characteristics

Maximum current (Imax)40 A
Accuracy classB
HABC13 110-101 MID
ManufacturerABB Stotz-Kontakt
HAN2CMA103574R1000
GTIN7392696035743
VersionDirect measurement
Implementation of the interfaceWithout
Width in pitch units3
Frequency50 to 60 Hz
Suitable forRelation
Mounting typeREG
Nominal current (In)5A
IP protection)IP20
Protection class (NEMA)Other
PermitMeasuring Instruments Directive
