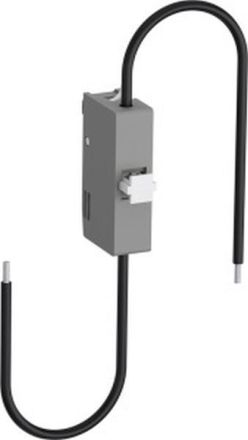

ABB Stotz-Kontakt CB5-01 auxiliary switch, 1SBN010013R1001

In stock
SKU: 446830
€5.89
Into a basketIn the basketGo

Overview

The CB5 impulse contact blocks are designed for use in enclosures in conjunction with an adjustable mechanical push button for clamp mounting on the contactor front. Two types are available: - CB5-10: normally open contact with a black actuator (ON function), - CB5-01: normally closed contact with a light grey actuator (OFF function). These blocks are equipped with 2 connecting cables 0.5 mm² with end, approx. 18 cm long.

PropertyValue
Number of contacts as normally closed:1
Mounting type:Front mounting
Type of electrical connection:Screw connection
Design:plug-in
Rated operating current Ie at AC-15, 230 V:3 A
Socket:without

Characteristics

HABCB5-01
ManufacturerABB Stotz-Kontakt
HAN1SBN010013R1001
GTIN3471522121059
Number of contacts as opener1
VersionAttachable
Design of the electrical connectionScrew connection
Rated operating current Ie at AC-15, 230 V3 A
VersionWithout
Mounting typeFront mounting
ABB Stotz-Kontakt CB5-01 auxiliary switch, 1SBN010013R1001
ABB Stotz-Kontakt CB5-01 auxiliary switch, 1SBN010013R1001
