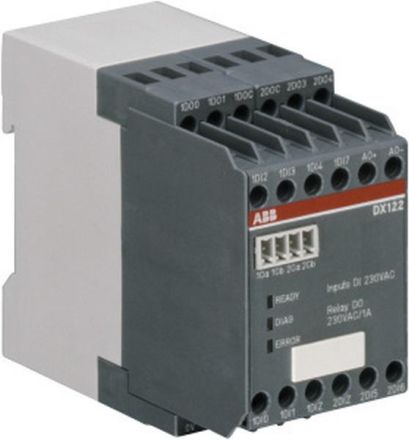

ABB Stotz-Kontakt DX122-FBP.0, DX122 IO module for UMC100, DI 110/230VAC, supply 24VDC, 1SAJ622000R0101

In stock
SKU: 462736
€596.84
Into a basketIn the basketGo

Overview

Digital extension module DX122-FBP.0. Supply voltage 24V DC, 8 digital inputs 110/230V AC, 4 digital outputs relay and 1 analog output 0.4-20mA / 0-10V configurable. Communication takes place via a simple two-wire cable, maximum distance from the UMC100 is 3.00m.

PropertyValue
Number of outputs, contact-based:4
Number of binary inputs:8
Design:Digital module
Design of electrical connection for auxiliary and control circuit:Screw connection
Rated control supply voltage Us for DC:24 V
Input for analog temperature sensors:no
Input for earth fault detection:no
Input for thermistor connection:no
Switching function:monostable
Protection class (IP):IP20
Voltage type for actuation:DC
Number of analog outputs:1
Protection class (NEMA):1

Characteristics

Design of electrical connection for auxiliary and control circuitScrew connection
HABDX122-FBP.0
ManufacturerABB Stotz-Kontakt
HAN1SAJ622000R0101
GTIN4013614403729
VersionDigital module
Rated control supply voltage Us at DC24V
Switching functionMonostable
IP protection)IP20
Protection class (NEMA)1
Voltage type for actuationDC
ABB Stotz-Kontakt DX122-FBP.0, DX122 IO module for UMC100, DI 110/230VAC, supply 24VDC, 1SAJ622000R0101
