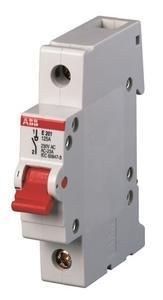

Load-break switch E 200 for DIN rail mounting in accordance with DIN EN 60715 with rated currents of 80 - 125 A available and conditional rated short-circuit current of 25 kA. Additional auxiliary contacts S2C-H6R can be attached. Can be removed quickly without dismantling the phase rail and using captive screws. Locking device as an accessory prevents unauthorized ON/OFF switching. Certified according to approvals CCC, EAC, KEMA
| Property | Value |
| Number of poles: | 1 |
| Rated current: | 125 A |
| Rated voltage: | 230 V |
| Width in modular spacing: | 1 |
| Switching function: | Off switch |
| With signal lamp: | no |
| Type of voltage: | AC |
| Color of the cap: | gray |
| Protection class (IP): | IP10 |
| Min. Rated voltage: | 12 V |
| Short-circuit strength (Icw): | 6 kA |
| Forced disconnection (according to DIN VDE 0113): | yes |
| Installation depth: | 70 mm |
| Number of contacts as normally open: | 1 |
