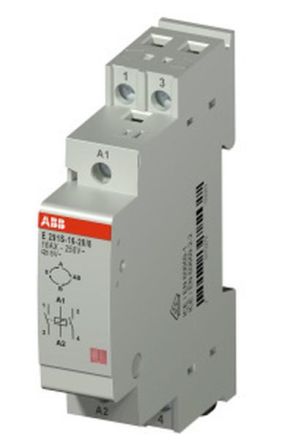

ABB Stotz-Kontakt E291S-16-20/8 , series impulse switch coil 8 VAC, 16 A, 2 NO , 2TAZ313000R2062

In stock

SKU: 468721

Price on request

€37.08

€0

Overview

The E291-S series impulse switch is equipped with two normally open contacts and enables switching in a sequence (0 - A - AB - B - 0). The predefined switching sequence of the main contacts enables programmed switching on and off of different light strands. The device has a clearly visible LED switch position display on the front.

Property	Value
Width in modular spacing:	1
Rated switching current:	16 A
Control voltage 1:	230 V
Control voltage type 1:	AC
Control voltage 2:	110 V
Control voltage type 2:	DC
Installation depth:	68 mm
Function:	electronic for central control
Mounting type:	DIN rail
Frequency of control voltage 1:	50 Hz
Frequency of control voltage 2:	50 Hz
Type of supply voltage:	AC
Supply voltage:	250 V
Max. incandescent lamp load:	4000 W
Max. fluorescent lamp load:	4000 VA
Max. fluorescent lamp load (duo circuit):	3200 VA
Max. fluorescent lamp load (parallel compensated):	3200 VA
Max. Switching current (cos phi = 0.6):	32 A
Manual operation possible:	yes
Number of contacts as normally open:	2
