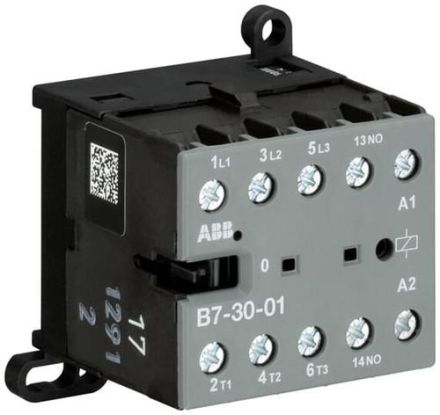

ABB Stotz-Kontakt GJL1311001R3017 B7-30-01-37 200V 40-450Hz miniature contactor

In stock
SKU: 835228
€52.36
Into a basketIn the basketGo

Overview

Miniature contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) represent a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. This and the wide range of contact and coil variants offer a very wide range of application options, even in unfavourable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Attachable accessories include quenching elements and 2-pole auxiliary switches that can be plugged in from the side or front.

PropertyValue
Normally open main contact:3
Normally closed auxiliary contacts:1
Rated operating power at AC-3, 400 V:5.5 kW
Rated operating current Ie at AC-1, 400 V:20 A
Ie at AC-3, 400V:12 A
Voltage type for actuation:AC
Rated control supply voltage AC 50 Hz:200 V
Voltage AC 60Hz:200 V
Connection type main circuit:Screw connection
Suitable for series installation:no
Rated operating power NEMA:2.2371 kW

Characteristics

Rated control supply voltage AC 50 Hz200 V
HABB7-30-01-37 200V 40-450Hz
ManufacturerABB Stotz-Kontakt
HANGJL1311001R3017
GTIN4013614264979
Connection type main circuitScrew connection
Rated operating power NEMA2,2371 kW
Rated operational power at AC-3, 400 V5.5kW
Rated operational current Ie at AC-1, 400 V20A
Suitable for series installationNo
Voltage type for actuationAC
