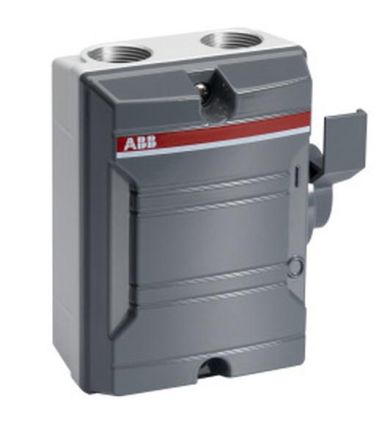

HABKSE 325 TPN
HAN2CMA142412R1000
GTIN7392696424127
Connection type main circuitScrew connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Version as reversing switchNo
Design of the actuating elementRocker arm
Rated operational power at AC-3, 400 V15kW
Rated operating voltage690V
Rated continuous current Iu25A
Rated continuous current at AC-21, 400 V25A
Rated continuous current at AC-23, 400 V16A
Color of the actuatorGray
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeComplete device in housing
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Switching capacity at 400 V7.5kW
Protection class (IP), frontIP65
Protection class (NEMA)4
Voltage release optionalNo
LockableNo
