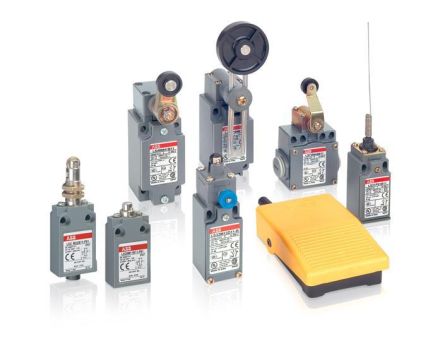

ABB Stotz-Kontakt LS21P11B11-U01 grey IP67 compact position switch, 1SBV016011R3801

ABB Stotz-Kontakt LS21P11B11-U01 grey IP67 compact position switch, 1SBV016011R3801

In stock

SKU: 456357

Price on request

€41.11

€0

Overview

LS21P11B11-U01 is a 30 mm wide, compact position switch made of glass fiber reinforced UL-V0 material, with 2 M4 mounting holes on top, a pre-wired UL62 - PVC cable (1 m) on the side, a flattened brass pressure bolt and 1 NO + 1 NC as snap contact

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Length of sensor:	16 mm
Width of sensor:	30 mm
Height of sensor:	60 mm
Switching function:	Snap-action switching element
Protection class (IP):	IP67
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the actuating element:	domed plunger
Design of the electrical connection:	pre-assembled with cable
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25 to 70 °C
Forced opening:	no
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated operating current Ie at DC-13, 125 V:	0.55 A
Rated operating current Ie at DC-13, 24 V:	2.8 A
Rated operating current Ie at AC-15, 24 V:	10 A
Rated operating current Ie at AC-15, 125 V:	5.5 A
Rated operating current Ie at AC-15, 230 V:	3 A
Alignment of the actuating element:	other
Switching function latching:	no
Protection class (NEMA):	6
