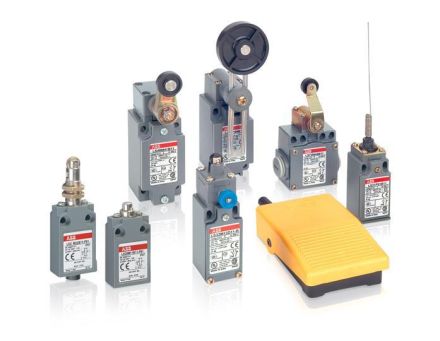

ABB Stotz-Kontakt LS33M51B11 position switch, 1SBV013851R1211

ABB Stotz-Kontakt LS33M51B11 position switch, 1SBV013851R1211

In stock

SKU: 457488

Price on request

€63.23

€0

Overview

LS32M51B11 is a 30 mm wide position switch made of a zinc alloy (Zamak), with 2 mounting holes at the top, 1 cable entry according to ISO M20x1.5 at the bottom, a flattened plastic roller lever (adjustable) and 1 NO + 1 NC as snap contact

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Length of sensor:	46 mm
Width of sensor:	30 mm
Height of sensor:	100 mm
Switching function:	Snap-action switching element
Protection class (IP):	IP66
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the actuating element:	domed plunger
Design of the electrical connection:	Cable entry (metric)
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25 to 70 °C
Forced opening:	no
Explosion protection category for gas:	without
Housing coating:	powder-coated
Housing material:	metal
Rated operating current Ie at DC-13, 230 V:	0.4 A
Rated operating current Ie at DC-13, 125 V:	0.6 A
Rated operating current Ie at DC-13, 24 V:	6 A
Rated operating current Ie at AC-15, 24 V:	10 A
Rated operating current Ie at AC-15, 125 V:	5.5 A
Rated operating current Ie at AC-15, 230 V:	3.1 A
Alignment of the actuating element:	other
Switching function latching:	no
Protection class (NEMA):	4X
