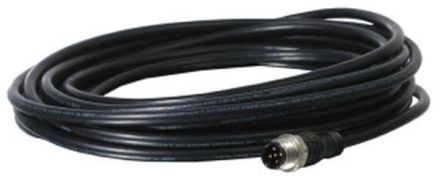

ABB Stotz-Kontakt M12-C62, cable 6 m with M12 pin connector straight, 5 x 0.34 mm² and shielding, 2TLA020056R0200

In stock

SKU: 463124

Price on request

€53.64

€0

Overview

Various pre-assembled M12 cable types in different cable lengths are suitable for a quick and easy connection between sensors, light curtains, light grids, etc. or for connection to the evaluation units.

Property	Value
Rated current In:	2 A
Cable sheath color:	black
With LED display:	no
Cable sheath material:	Polyvinyl chloride (PVC)
Contact base material:	CuSn
Number of poles:	5
Design of electrical connection, field side:	M12
Design of electrical connection, housing side:	M12
Type of plug contact, housing side:	Male (plug)
Arrangement of the cable feed, housing side:	straight
Cable length:	6 m
Halogen-free:	no
Shielded:	yes
Cable design:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	Ag
Permissible external cable temperature after installation without vibration:	0 to 80 °C
Permissible Cable external temperature during assembly/handling:	0 to 80 °C
Rated voltage:	300 V
Voltage resistance:	0.2 mOhm
Protection class (IP):	IP67
