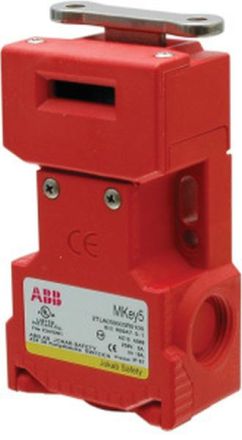

ABB Stotz-Kontakt MKey5 , safety interlock switch with standard actuator, 2NC + 1 NO , 2TLA050003R0101

ABB Stotz-Kontakt MKey5 , safety interlock switch with standard actuator, 2NC + 1 NO , 2TLA050003R0101

In stock

SKU: 462946

Price on request

€90.65

€0

Overview

Mkey are safety interlock switches with or without guard locking. There are versions made of plastic, plastic with a stainless steel head, die-cast or stainless steel. There are various rigid and flexible actuators for a wide variety of installation situations. The versions with guard locking (for process or personal protection) have a locking force of 1800 to 2000 N.

Property	Value
Design of the interface for safety-related communication:	without
Suitable for safety functions:	yes
Protection class (IP):	IP67
Housing material:	plastic
With status display:	no
Ambient temperature during operation:	-25 to 80 °C
Explosion protection category for dust:	without
Width of the sensor:	58 mm
Length of the Sensors:	34.5 mm
Rated operating current Ie at AC-15, 230 V:	3 A
Design of the electrical connection:	Cable entry (metric)
Design of the interface:	without
Forced opening:	yes
Design of the switching element:	Slow-action switching element
Number of safety-related auxiliary contacts:	1
Rated operating current Ie at DC-13, 24 V:	2.5 A
Explosion protection category for gas:	without
Housing design:	Special design
Height of the sensor:	100.4 mm
Protection class (NEMA):	6
