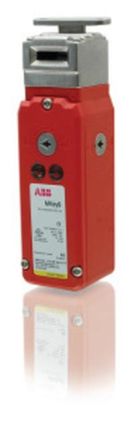

ABB Stotz contact MKey9 24VDC No Key, Mkey9 24VDC, without actuator, 2TLA050007R0012

ABB Stotz contact MKey9 24VDC No Key, Mkey9 24VDC, without actuator, 2TLA050007R0012

In stock

SKU: 473551

Price on request

€384.22

€0

Overview

Mkey are safety interlock switches with or without guard locking. There are versions made of plastic, plastic with a stainless steel head, die-cast or stainless steel. There are various rigid and flexible actuators for a wide variety of installation situations. The versions with guard locking (for process or personal protection) have a locking force of 1800 to 2000 N.

Property	Value
Design of the interface:	without
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Cable entry (metric)
Design of the switching element:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Rated operating current Ie at DC-13, 24 V:	2.5 A
Rated control supply voltage Us magnetic drive at DC:	24.00 V
Width of the Sensors:	46 mm
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Suitable for safety functions:	yes
Housing design:	special design
Height of sensor:	160 mm
Length of sensor:	46 mm
With escape release:	no
With status display:	yes
Protection class (IP):	IP67
Ambient temperature during operation:	-25 to 40 °C
Housing material:	Plastic
Closing force:	1800 N
With auxiliary release:	no
Protection class (NEMA):	6
