Control and signaling devices, modular series. A versatile range of drives with high flexibility and a wide selection of electrical functions. High electrical performance AC-15, 6A at 230 V. The flexible solution that simplifies your warehouse management. The following standards and approvals are met: IEC/EN 60947-1: Low-voltage switchgear and control devices - Part 1: General rules / IEC/EN 60947-5-1: Low-voltage switchgear and control devices - Part 5-1: Control devices and switching elements - Electromechanical control devices / IEC/EN 60947-5-5: Low-voltage switchgear and control devices - Part 5-5: Control devices and switching elements - Electrical emergency stop device with mechanical latching function / IEC/EN 60073: Basic and safety rules for the human-machine interface, marking - Coding principles for display devices and control units / IEC/EN 60529: Degrees of protection provided by enclosures (IP code) / According to DIN EN 50013: Industrial low-voltage switchgear Connection designations and code numbers for certain control devices / DIN 40050-9: Road vehicles IP protection classes Protection against foreign bodies, water and Touching Electrical Equipment / U/508: Industrial Control Equipment / CSA C22.2 No 14: Industrial Control Equipment

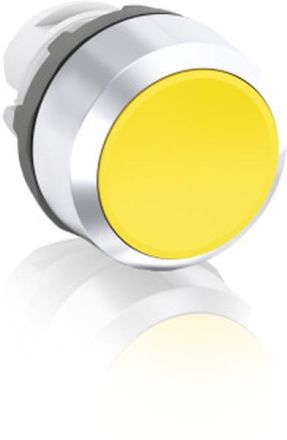

| Property | Value |
| Button design: | flat |
| Button color: | yellow |
| Lens design: | round |
| Momentary: | no |
| Switching function latching: | yes |
| Hole diameter: | 22 mm |
| Width of opening: | 28 mm |
| Height of opening: | 11.5 mm |
| Suitable for lighting: | no |
| Protection class (IP), front: | IP66 |
| Number of command points: | 1 |
| With front ring: | yes |
| Front ring material: | metal |
| Front ring color: | chrome |
| Labeled: | no |
| With protective cover: | no |
| NEMA protection class, front: | 4X |
