HAN1SAM350006R1011

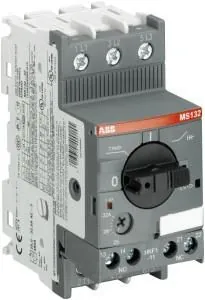

HABMS132-16-HKF1-20
GTIN4013614482212
Triggering technologyThermomagnetic
Rated operational power at AC-3, 400 V7.5kW
Rated operating voltage250.0V
Rated continuous current Iu16A
Rated ultimate short-circuit breaking current Icu at 400 V, AC100kA
Width45 mm
Setting range of the instantaneous short-circuit release240.00 A
Connection type main circuitScrew connection
Device typeComplete device in housing
Height97.8 mm
With integrated auxiliary switchYes
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureYes
Number of poles3
Depth86.55 mm
Overload release current setting10.00 A
Design of the actuating elementRotary knob
