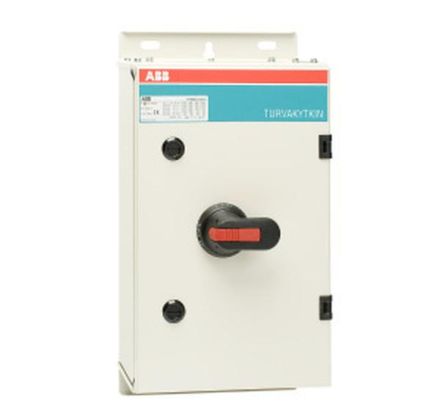

ABB Stotz-Kontakt OT125GLCC3TZ 3-pole 55kW 400V with handle safety switch, 1SCA148212R1001

In stock
SKU: 473092
€1,216.30
Into a basketIn the basketGo

Overview

ABB's safety switches in housings meet the equipment standard DIN EN 60947-3. The switches are suitable for use as repair and maintenance switches. Our range includes versions in plastic housings, sheet steel housings, aluminum housings, stainless steel housings and for special EMC applications. The switches are also available in 3-pole, 4-pole and 6-pole versions. Depending on the type, they can be used for AC and sometimes also for DC voltages. ABB offers a wide range of handles in black and red-yellow versions as accessories. Auxiliary contacts, fourth poles, connection terminals and various cable entries are also available as accessories from ABB.

PropertyValue
Number of poles:3
Rated operating power at AC-23, 400 V:55 kW
Rated continuous current Iu:125 A
Max. Rated operating voltage Ue at AC:1000 V
Version as EMERGENCY STOP device:no
Protection class (IP), front:IP65
Connection type main circuit:screw connection
Device design:Complete device in housing
Design of the actuating element:long rotary handle
Suitable for floor mounting:no
Conditional rated short-circuit current Iq:24 kA
Motor drive integrated:no
Suitable for front mounting 4-hole:yes
Version as maintenance/repair switch:yes
Voltage release optional:no
Suitable for front mounting central:no
Suitable for intermediate installation:no
Suitable for distribution board installation:no
Version as main switch:yes
Version as safety switch:yes
Motor drive optional:no
Lockable:no
Version as reversing switch:no
Color of the actuating element:black
Rated operating voltage:1000 V
Switching capacity at 400 V:55 kW
Rated continuous current at AC-21, 400 V:125 A
Number of switches:1
Rated continuous current at AC-23, 400 V:125 A
Protection class (NEMA):other

Characteristics

HABOT125GLCC3TZ 3-pole 55kW 400V with handle
ManufacturerABB Stotz-Kontakt
HAN1SCA148212R1001
GTIN6417019776033
Connection type main circuitScrew connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementLong rotary handle
Conditional rated short-circuit current Iq24kA
Rated operational power at AC-23, 400 V55kW
Rated operating voltage1000V
Rated continuous current Iu125A
Rated continuous current at AC-21, 400 V125A
Rated continuous current at AC-23, 400 V125A
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeComplete device in housing
Max. rated operating voltage Ue at AC1000V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Switching capacity at 400 V55kW
Protection class (IP), frontIP65
Protection class (NEMA)Other
Voltage release optionalNo
LockableNo
ABB Stotz-Kontakt OT125GLCC3TZ 3-pole 55kW 400V with handle safety switch, 1SCA148212R1001
