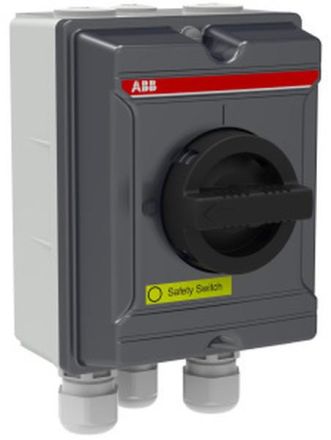

HABOTA16S4G 16A 7.5kW 400V 4-pole
HAN1SCA142666R1001
GTIN6417019701585
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementRotary knob
Conditional rated short-circuit current Iq6.5kA
Rated operating voltage750V
Rated continuous current Iu40A
Rated continuous current at AC-21, 400 V32 A
Rated continuous current at AC-23, 400 V16A
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Device typeComplete device in housing
Max. rated operating voltage Ue at AC750V
Motor drive integratedNo
Motor drive optionalNo
Number of poles4
Switching capacity at 400 V7.5kW
Protection class (IP), frontIP65
Protection class (NEMA)Other
Voltage release optionalNo
LockableNo
