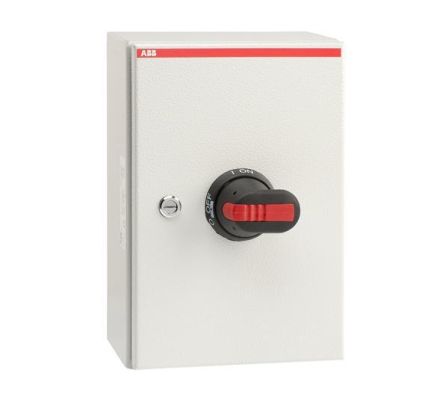

ABB Stotz-Kontakt OTL100B3U 3-pole 100A 690V load disconnector, 1SCA022562R8430

ABB Stotz-Kontakt OTL100B3U 3-pole 100A 690V load disconnector, 1SCA022562R8430

In stock

SKU: 445904

Price on request

€381.64

€0

Overview

Load break switches in housings from ABB meet the device standards DIN EN 60947-3 and DIN EN 60529. The switches are suitable for use as repair and maintenance switches. Our range includes versions with plastic housings, sheet steel housings, aluminum housings and stainless steel housings. The switches are also available in 3-pole, 4-pole and 6-pole versions. Depending on the type, they can be used for AC and sometimes also for DC voltages. ABB offers a wide range of handles in black and red-yellow versions as accessories. Auxiliary contacts, fourth poles, connection terminals and various cable entries are also available as accessories from ABB.

Property	Value
Number of poles:	3
Rated operational power at AC-23, 400 V:	37 kW
Rated continuous current Iu:	115 A
Max. Rated operating voltage Ue at AC:	750 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Device design:	Complete device in housing
Design of the actuating element:	long rotary handle
Suitable for floor mounting:	no
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Color of the actuating element:	black
Rated operating voltage:	750 V
Switching capacity at 400 V:	37 kW
Rated continuous current at AC-21, 400 V:	100 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	80 A
