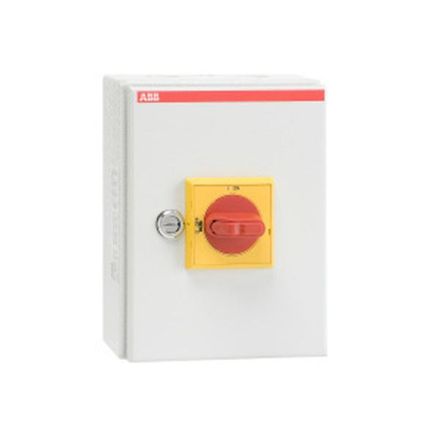

ABB Stotz-Kontakt OTL16A3B, safety switch 3-pole 7.5 kW 400V with red-yellow handle, 1SCA022575R1630

ABB Stotz-Kontakt OTL16A3B, safety switch 3-pole 7.5 kW 400V with red-yellow handle, 1SCA022575R1630

In stock

SKU: 458373

Price on request

€286.42

€0

Overview

ABB's enclosed safety switches help you provide a safe working environment. The extensive product portfolio includes encapsulated switches with protection classes from IP54 to IP67. Our safety switches switch currents from 16 A to 1200 A (IEC) and rated powers from 7.5 kW to 1200 kW at voltages up to 690 V (AC23-A). The series also has IEC and UL approvals. ABB's range includes side- and front-operated safety switches in plastic housings, steel housings, stainless steel housings and aluminum housings. The product portfolio also offers individual solutions for the EMC area (electromagnetic interference). The simple handling makes the safety switches an optimal solution for a wide variety of applications.

Property	Value
Version as main switch:	yes
Version as maintenance/repair switch:	yes
Version as safety switch:	yes
Version as EMERGENCY STOP device:	no
Version as reversing switch:	no
Number of switches:	1
Max. Rated operating voltage Ue at AC:	750
Rated operating voltage:	750
Rated continuous current Iu:	40
Rated continuous current at AC-23, 400 V:	16
Rated continuous current at AC-21, 400 V:	32
Rated operating power at AC-23, 400 V:	7.5
Switching capacity at 400 V:	7.5
Number of poles:	3
Motor drive optional:	no
Motor drive integrated:	no
Voltage release optional:	no
Device design:	Complete device in housing
Suitable for floor mounting:	no
Suitable for front mounting 4-hole:	yes
Suitable for front mounting central:	no
Suitable for distributor installation:	no
Color of the actuating element:	red
Design of the actuating element:	Rotary knob
Lockable:	no
Protection class (IP), front:	IP65
