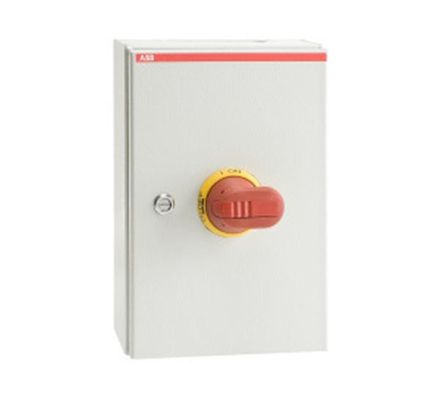

ABB Stotz-Kontakt OTL90A4B, safety switch 4-pole 45 kW 400V with red-yellow handle, 1SCA022555R7910

ABB Stotz-Kontakt OTL90A4B, safety switch 4-pole 45 kW 400V with red-yellow handle, 1SCA022555R7910

In stock

SKU: 471029

Price on request

€664.06

€0

Overview

ABB's enclosed safety switches help you provide a safe working environment. The extensive product portfolio includes encapsulated switches with protection classes from IP54 to IP67. Our safety switches switch currents from 16 A to 1200 A (IEC) and rated powers from 7.5 kW to 1200 kW at voltages up to 690 V (AC23-A). The series also has IEC and UL approvals. ABB's range includes side- and front-operated safety switches in plastic housings, steel housings, stainless steel housings and aluminum housings. The product portfolio also offers individual solutions for the EMC area (electromagnetic interference). The simple handling makes the safety switches an optimal solution for a wide variety of applications.

Property	Value
Number of poles:	4
Rated operating power at AC-23, 400 V:	45 kW
Rated continuous current Iu:	125 A
Max. Rated operating voltage Ue at AC:	750 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Device design:	Complete device in housing
Design of the actuating element:	long rotary handle
Suitable for floor mounting:	no
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	yes
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Color of the actuating element:	red
Rated operating voltage:	750 V
Switching capacity at 400 V:	45 kW
Rated continuous current at AC-21, 400 V:	125 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	90 A
