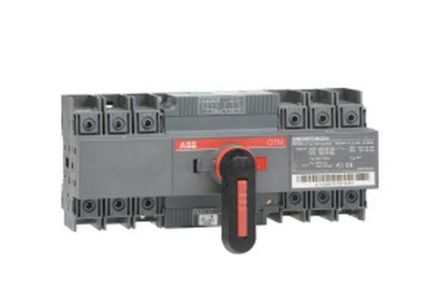

HABOTM100F3CMA230V
HAN1SCA120071R1001
GTIN6417019516820
Connection type main circuitScrew connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementLong rotary handle
Rated operational power at AC-23, 400 V37kW
Rated operating voltage800V
Rated continuous current at AC-21, 400 V100A
Rated continuous current at AC-23, 400 V80A
Rated short-time withstand current Icw2.5kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Device typeBuilt-in device plug-in technology
Max. rated operating voltage Ue at AC800V
Motor drive integratedYes
Motor drive optionalNo
Number of poles3
Switching capacity at 400 V37kW
Protection class (IP), frontIP20
Protection class (NEMA)1
Voltage release optionalNo
LockableYes
