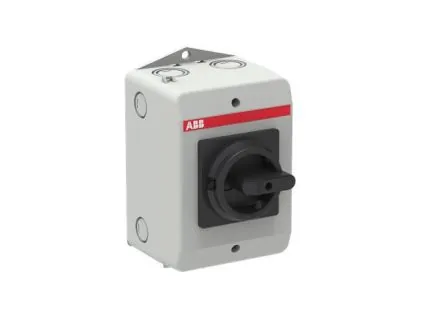

Load break switches in housings from ABB meet the device standards DIN EN 60947-3 and DIN EN 60529. The switches are suitable for use as repair and maintenance switches. Our range includes versions with plastic housings, sheet steel housings, aluminum housings and stainless steel housings. The switches are also available in 3-pole, 4-pole and 6-pole versions. Depending on the type, they can be used for AC and sometimes also for DC voltages. ABB offers a wide range of handles in black and red-yellow versions as accessories. Auxiliary contacts, fourth poles, connection terminals and various cable entries are also available as accessories from ABB.
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 9 kW |
| Rated continuous current Iu: | 32 A |
| Max. Rated operating voltage Ue at AC: | 750 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP65 |
| Device design: | Complete device in housing |
| Design of the actuating element: | Rotary knob |
| Suitable for floor mounting: | no |
| Conditional rated short-circuit current Iq: | 6.5 kA |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | yes |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as Reversing switch: | no |
| Color of the actuating element: | black |
| Rated operating voltage: | 750 V |
| Switching capacity at 400 V: | 9 kW |
| Rated continuous current at AC-21, 400 V: | 25 A |
| Number of switches: | 1 |
| Rated continuous current at AC-23, 400 V: | 20 A |
| Protection class (NEMA): | other |
