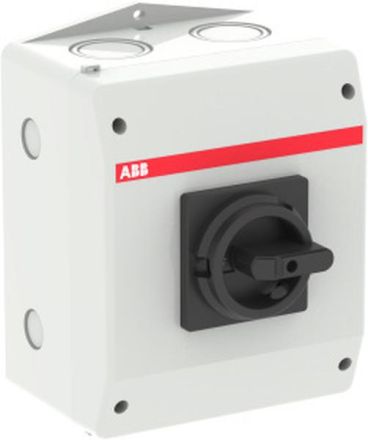

ABB Stotz-Kontakt OTU63B4MS3, switch disconnector in housing 4-pole 63A 690V with black handle, 1SCA132690R1001

ABB Stotz-Kontakt OTU63B4MS3, switch disconnector in housing 4-pole 63A 690V with black handle, 1SCA132690R1001

In stock

SKU: 464637

Price on request

€339.24

€0

Overview

Load break switches in housings from ABB meet the device standards DIN EN 60947-3 and DIN EN 60529. The switches are suitable for use as repair and maintenance switches. Our range includes versions with plastic housings, sheet steel housings, aluminum housings and stainless steel housings. The switches are also available in 3-pole, 4-pole and 6-pole versions. Depending on the type, they can be used for AC and sometimes also for DC voltages. ABB offers a wide range of handles in black and red-yellow versions as accessories. Auxiliary contacts, fourth poles, connection terminals and various cable entries are also available as accessories from ABB.

Property	Value
Number of poles:	4
Rated operating power at AC-23, 400 V:	37 kW
Rated continuous current Iu:	80 A
Max. Rated operating voltage Ue at AC:	750 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Device design:	Complete device in housing
Design of the actuating element:	Rotary knob
Suitable for floor mounting:	no
Conditional rated short-circuit current Iq:	13 kA
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as Reversing switch:	no
Color of the actuating element:	black
Rated operating voltage:	750 V
Switching capacity at 400 V:	37 kW
Rated continuous current at AC-21, 400 V:	63 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	63 A
Protection class (NEMA):	other

Characteristics

HABOTU63B4MS3 4-pole 63A 690V

Manufacturer

HAN1SCA132690R1001

GTIN6417019617954

Number of switches1

Designed as main switchYes

Designed as an EMERGENCY STOP deviceNo

Designed as a safety switchNo

Designed as a maintenance/repair switchNo

Version as reversing switchNo

Design of the actuating elementRotary knob

Conditional rated short-circuit current Iq13kA

Rated operational power at AC-23, 400 V37kW

Rated operating voltage750V

Rated continuous current Iu80A

Rated continuous current at AC-21, 400 V63 A

Rated continuous current at AC-23, 400 V63 A

Color of the actuatorBlack

Suitable for floor mountingNo

Suitable for front mounting 4-holeYes

Suitable for front mounting CentralNo

Suitable for distribution board installationNo

Suitable for intermediate constructionNo

Device typeComplete device in housing

Max. rated operating voltage Ue at AC750V

Motor drive integratedNo

Motor drive optionalNo

Number of poles4

Switching capacity at 400 V37kW

Protection class (IP), frontIP65

Protection class (NEMA)Other

Voltage release optionalNo

LockableNo
