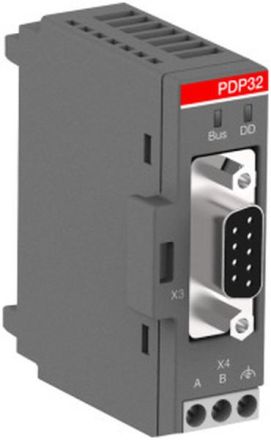

ABB Stotz-Kontakt PDP32.0 , PDP32 PROFIBUS DP Interface , 1SAJ242000R0001

ABB Stotz-Kontakt PDP32.0 , PDP32 PROFIBUS DP Interface , 1SAJ242000R0001

In stock

SKU: 462994

Price on request

€338.33

€0

Into a basketIn the basketGo

Overview

PDP32.0 communication interface for PROFIBUS DP supports the protocols PROFIBUS DP/V0 and V1

Property	Value
Height:	64 mm
Width:	22.5 mm
Depth:	59 mm
Type of supply voltage:	DC
Protection class (IP):	IP20
Suitable for safety functions:	no
Rack mounting possible:	no
IO-Link Master:	no
Supply voltage for DC:	24 V
Wireless standard WLAN 802.11:	no
Wall/direct mounting possible:	yes
Front installation possible:	no
Performance level according to EN ISO 13849-1:	without
Wireless standard Bluetooth:	no
System component:	yes
With electrical isolation:	yes
Field bus connection possible via separate bus coupler:	yes
Mounting rail mounting possible:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for SERCOS:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for MODBUS:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for TCP/IP:	no
Supports protocol for Data-Highway:	no
Supports protocol for ASI:	no
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for SUCONET:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Wireless standard GPRS:	no
Wireless standard GSM:	no
Supports protocol for PROFIBUS:	yes
Supports protocol for SafetyBUS p:	no
Supports protocol for INTERBUS:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for PROFINET IO:	no
SIL according to IEC 61508:	without
Radio standard UMTS:	no
