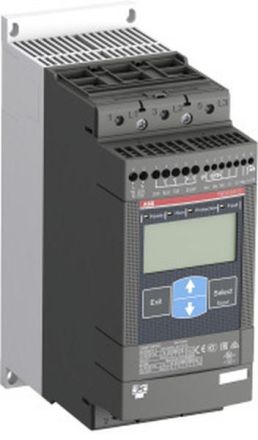

ABB Stotz-Kontakt PSE30-600-70 , soft starter , 1SFA897103R7000

In stock
SKU: 458420
€917.19
Into a basketIn the basketGo

Overview

The PSE series soft starters are the world's first compact soft starters with built-in electronic overload protection for the motor and built-in torque control for precise control of pumps. The combination of compact design and key features delivers a highly powerful starting solution. The illuminated, language-neutral display with the easy-to-use four-button keypad provides easy access to the soft starter's advanced features. The display also shows all the necessary information during start-up or stop-down or during continuous operation.

PropertyValue
Integrated overload protection of the motor:yes
Rated power three-phase motor, standard circuit, at 230 V:7.5 kW
Rated ambient temperature without derating:40 °C
Rated power three-phase motor, standard circuit, at 400 V:15 kW
Rated operating current Ie at 40 °C Tu:30 A
Type of voltage for actuation:AC
Rated operating voltage Ue:208 to 600 V
Rated control supply voltage Us at AC 50 Hz:100 to 250 V
Rated control supply voltage Us at AC 60 Hz:100 to 250 V
Torque control:yes
Internal bridging:yes
With display:yes
Function:one direction of rotation
Trip class:adjustable
Protection class (IP):IP00
Protection class (NEMA):1

Characteristics

Rated operating voltage Ue208 to 600 V
HABPSE30-600-70
ManufacturerABB Stotz-Kontakt
HAN1SFA897103R7000
GTIN7320500400616
Trigger classAdjustable
Rated control supply voltage Us at AC 50 Hz100 to 250 V
Rated control supply voltage Us at AC 60 Hz100 to 250 V
FunctionOne direction of rotation
With displayYes
IP protection)IP00
Protection class (NEMA)1
Voltage type for actuationAC
