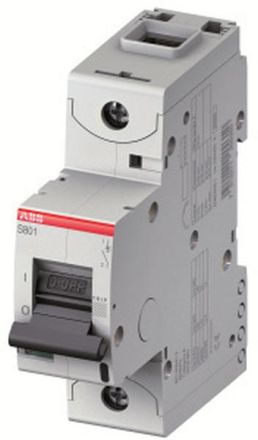

ABB Stotz-Kontakt S801C-D80 high-performance circuit breaker, 2CCS881001R0801

ABB Stotz-Kontakt S801C-D80 high-performance circuit breaker, 2CCS881001R0801

In stock

SKU: 456199

Price on request

€146.50

€0

Overview

The high-performance circuit breakers in the S800C series protect cables and lines against overload and short circuits. They have a rated short-circuit breaking capacity of 25kA at 240/415V AC. In addition, they can be used for voltages up to 400/690V AC and for direct voltages. With its thermal release mechanism, it offers equally effective protection against overloads, as does its electromechanical release mechanism against short circuits. The S800C complies with the IEC/EN 60947-2 standard and can be used for industrial purposes. Numerous approvals make it suitable for worldwide use and the extensive range of accessories makes it even more convenient to use. Thanks to the very fast arc extinguishing, your installation is optimally protected with the S800C.

Property	Value
Tripping characteristic:	D
Rated current:	80 A
Rated voltage:	440 V
Type of voltage:	AC/DC
Frequency:	50 to 60 Hz
Width in pitch units:	4
Number of poles (total):	1
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	82.5 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	15 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	25 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	25 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	15 kA
Pollution degree:	3
Switching neutral conductor:	no
Number of protected poles:	1
Suitable for flush-mounted installation:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	8 kV
Ambient temperature during operation:	-25 to 60 °C
Connectable conductor cross-section, stranded:	0 to 70 mm²
Connectable conductor cross-section single-wire:	0 to 50 mm²
