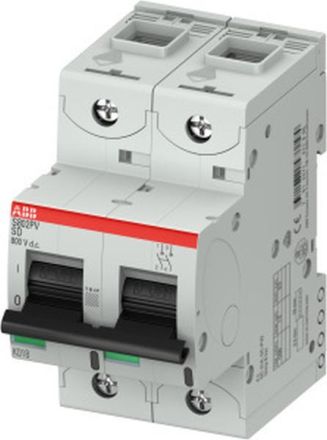

HABS802PV-SD125
HAN2CCF019636R0001
GTIN7612271471972
Connection type main circuitFlat plug connection
Number of switches7000
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Version as reversing switchNo
Design of the actuating elementGag
Rated operating voltage800V
Rated continuous current Iu125A
Rated short-time withstand current Icw1.5kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralYes
Suitable for distribution board installationYes
Suitable for intermediate constructionYes
Device typeComplete device in housing
Motor drive integratedNo
Motor drive optionalNo
Number of poles4
Protection class (IP), frontIP20
Protection class (NEMA)Other
Voltage release optionalYes
LockableNo
