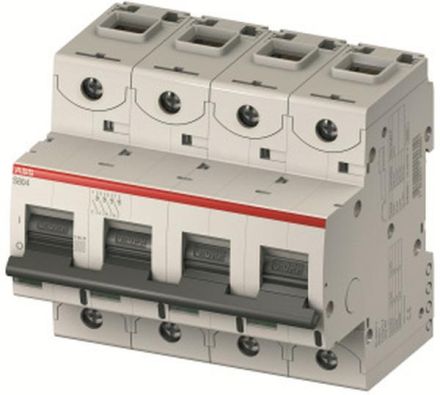

ABB Stotz-Kontakt S804C-D80 high-performance circuit breaker, 2CCS884001R0801

ABB Stotz-Kontakt S804C-D80 high-performance circuit breaker, 2CCS884001R0801

In stock

SKU: 456202

Price on request

€609.55

€0

Overview

The high-performance circuit breakers in the S800C series protect cables and lines against overload and short circuits. They have a rated short-circuit breaking capacity of 25kA at 240/415V AC. In addition, they can be used for voltages up to 400/690V AC and for direct voltages. With its thermal release mechanism, it offers equally effective protection against overloads, as does its electromechanical release mechanism against short circuits. The S800C complies with the IEC/EN 60947-2 standard and can be used for industrial purposes. Numerous approvals make it suitable for worldwide use and the extensive range of accessories makes it even more convenient to use. Thanks to the very fast arc extinguishing, your installation is optimally protected with the S800C.

Property	Value
Tripping characteristic:	D
Number of poles (total):	4
Number of protected poles:	4
Rated current:	80
Rated voltage:	440
Rated insulation voltage Ui:	500
Rated impulse withstand voltage Uimp:	8
Rated switching capacity Icn according to EN 60898 at 230 V:	15
Rated switching capacity Icn according to EN 60898 at 400 V:	15
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	25
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	25
Type of voltage:	AC/DC
Frequency:	50 to 60
Energy limitation class:	3
Suitable for flush-mounted installation:	no
Switching neutral conductor:	no
Overvoltage category:	4
Pollution degree:	3
Additional equipment possible:	yes
Width in modular spacing:	4
Installation depth:	82.5
Protection class (IP):	IP20
Ambient temperature during operation:	-25 to 60
Connectable conductor cross-section, stranded:	0 to 70
Connectable conductor cross-section, single-wire:	0 to 50
