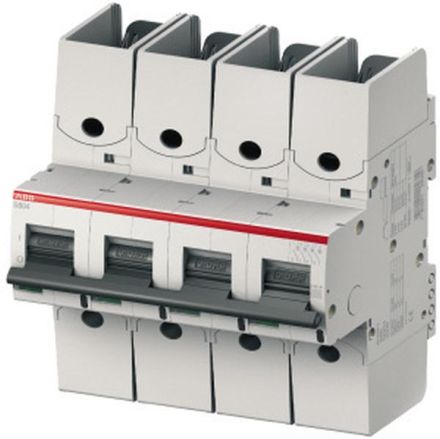

ABB Stotz-Kontakt S804S-K80-R high-performance circuit breaker, 2CCS864002R0627

ABB Stotz-Kontakt S804S-K80-R high-performance circuit breaker, 2CCS864002R0627

In stock

SKU: 456071

Price on request

€805.68

€0

Overview

The high-performance circuit breakers in the S800S series protect cables and lines against overload and short circuits. They have a rated short-circuit breaking capacity of 50 kA at 240/415 V AC. They can also be used for voltages up to 400/690 V AC and for direct voltages. With its thermal release mechanism, it offers equally effective protection against overloads, as does its electromechanical release mechanism against short circuits. The S800S complies with the IEC/EN 60947-2 standard and can be used for industrial purposes. Numerous approvals make it suitable for worldwide use and the extensive range of accessories makes it even more convenient to use. Thanks to the very fast arc extinguishing, your installation is optimally protected with the S800S.

Property	Value
Tripping characteristic:	K
Number of poles (total):	4
Number of protected poles:	4
Rated current:	80
Rated voltage:	690
Rated insulation voltage Ui:	690
Rated impulse withstand voltage Uimp:	8
Rated switching capacity Icn according to EN 60898 at 230 V:	40
Rated switching capacity Icn according to EN 60898 at 400 V:	40
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	50
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	50
Type of voltage:	AC
Frequency:	50 to 60
Energy limitation class:	3
Suitable for flush-mounted installation:	no
Switching neutral conductor:	no
Overvoltage category:	3
Pollution degree:	3
Additional equipment possible:	yes
Width in modular spacing:	4
Installation depth:	82.5
Protection class (IP):	IP20
Ambient temperature during operation:	-25 to 60
Connectable conductor cross-section, stranded:	0 to 70
Connectable conductor cross-section, single-wire:	0 to 50
