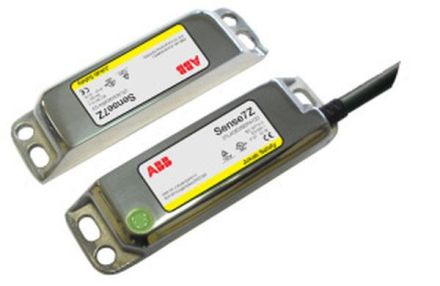

ABB Stotz-Kontakt Sense7Z 5M, Sense 7Z 5M safety magnetic switch 2NC + 1NO, cable 5 m, LED, 2TLA050056R5120

In stock
SKU: 462921
€290.17
Into a basketIn the basketGo

Overview

Sense7 are contactless, electronic locking devices with coding according to type 4 with a low coding level according to EN ISO 14119. The magnetic switches are fully electronic without reed contacts. There are versions made of plastic and stainless steel, each with different cable lengths.

PropertyValue
Rated supply voltage for DC:24 V
Category according to EN 954-1:4
Suitable for safety functions:yes
Length of sensor:14 mm
Height of sensor:50 mm
Type of actuation:Magnet
Width of sensor:88 mm
Performance level according to EN ISO 13849-1:Level e
Protection class (IP):IP67
Number of semiconductor outputs with signaling function:1
Number of safe semiconductor outputs:2
Number of safe contact-based outputs:2
Design of the interface for safety-related communication:other
Design of the electrical connection:cable
Design of the switching output:PNP
Explosion protection category for gas:without
Explosion protection category for dust:without
Housing design:Special design
Housing coating:uncoated
Secured switching distance OFF:10 mm
Secured switching distance ON:20 mm
Max. output current at the safe output:0.2 mA
Ambient temperature:-25 to 105 °C
Mechanical installation condition for sensor:not flush
Min. Output current:10 mA
Cross-circuit/short-circuit detection possible:yes
Switching distance:5 mm
Type of voltage:DC
With monitoring function for downstream devices:no
Housing material:stainless steel
SIL according to IEC 61508:3
With status display:yes
Protection class (NEMA):other

Characteristics

Mechanical installation condition for sensorNot flush
Rated supply voltage for DC24 V
Secured switching distance ON20 mm
HABSENSE7Z 5M
ManufacturerABB Stotz-Kontakt
HAN2TLA050056R5120
GTIN7350024466737
Type of operationMagnet
Design of the interface for safety-related communicationOther
Design of the switching outputPNP
Design of the electrical connectionCable
Housing coatingUncoated
Width of the sensor88 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designSpecial design
Height of the sensor50 mm
Length of the sensor14 mm
With status displayYes
Performance Level according to EN ISO 13849-1Level e
SIL according to IEC 615083
Switching distance5 mm
IP protection)IP67
Protection class (NEMA)Other
Voltage typeDC
Ambient temperature-25 to 105 °C
Housing materialStainless steel
