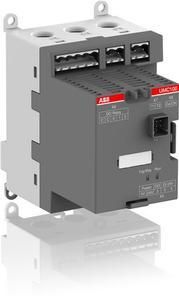

ABB Stotz-Kontakt UMC100.3 UC , UMC100 Univ. Motor Contr. 110-240V ATEX , 1SAJ530000R1200

In stock
SKU: 190374
€495.22
Into a basketIn the basketGo

Overview

UMC100.3 UC, Universal Motor Controller ATEX, supply voltage 110-240 V AC/DC, 6 DI (digital inputs), 4 DO (digital outputs), and input for PTC sensor. Expansion modules to expand the number of digital inputs and outputs, voltage measurement, or analog temperature measurement can be connected via a local field bus. ATEX approval.

PropertyValue
Number of outputs, contact-based:3
Current measurement module:yes
Rated operating current Ie:63 A
Input for thermistor connection:yes
Rated control supply voltage Us at DC:110 to 240 V
Interface design:PROFIBUS
Rated operating voltage Ue at AC 60 Hz:690 to 1000 V
Protection class (IP):IP20
Voltage type for actuation:AC/DC
Switching function:monostable
Input for analog temperature sensor:yes
Number of electronic outputs:1
Rated operating voltage Ue at AC 50 Hz:690 to 1000 V
Voltage detection module:yes
Rated operating frequency:50 to 60 Hz
Rated control supply voltage Us at AC 50 Hz:110 to 240 V
Rated control supply voltage Us at AC 60 Hz:110 to 240 V
Type of connection technology:Through-hole technology
Design of electrical connection for auxiliary and control circuit:Screw connection
Input for ground fault detection:yes
Number of binary inputs:6
Rated operating voltage Ue at DC:0.0 V
Protection class (NEMA):1

Characteristics

Rated operating current Ie63 A
Design of electrical connection for auxiliary and control circuitScrew connection
HABUMC100.3UC
ManufacturerABB Stotz-Kontakt
HAN1SAJ530000R1200
GTIN4013614496943
Implementation of the interfacePROFIBUS
Rated control supply voltage Us at AC 50 Hz110 to 240 V
Rated control supply voltage Us at AC 60 Hz110 to 240 V
Rated control supply voltage Us at DC110 to 240 V
Switching functionMonostable
IP protection)IP20
Protection class (NEMA)1
Voltage type for actuationAC/DC
