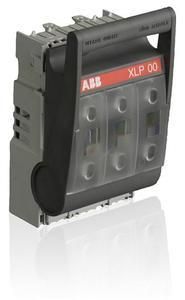

ABB Stotz-Kontakt XLP00-A40/75-B-3BC-below, XLP00-A40/75-B-3BC fuse switch disconnector 3-pole 160 A with 3 bridge terminals, 1SEP101898R0002

ABB Stotz-Kontakt XLP00-A40/75-B-3BC-below, XLP00-A40/75-B-3BC fuse switch disconnector 3-pole 160 A with 3 bridge terminals, 1SEP101898R0002

In stock

SKU: 193820

Price on request

€129.66

€0

Overview

The EasyLine series from ABB has a robust, uniform design that is designed to be user-friendly. Thanks to this modern design, the series switches rated currents from 100 A - 630 A at voltages from 220 V to 690 V with ease. In addition, a high level of safety is guaranteed with protection class IP30 from the front in the closed position and protection class IP20 in the open position. ABB offers the series in 1-, 2-, 3- and 4-pole variants including a wide range of cable clamps and snap-on accessories. In addition, the devices are tested according to EN / IEC 60947-3.

Property	Value
Rated continuous current Iu:	125 A
Protection class (IP), front:	IP30
Number of poles:	3
Design as main switch:	yes
Design of the actuating element:	other
Connection type main circuit:	Cable clamp
Suitable for front mounting:	no
Suitable for floor mounting:	no
With fuse monitoring:	no
Designed as an EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	50 kA
Designed as a safety switch:	yes
Max. Rated operating voltage Ue at AC:	690 V
Suitable for busbar construction:	yes
Suitable for fuse links:	NH000, NH00
Position of the actuating element:	front
Motor drive integrated:	no
Motor drive optional:	no
Cable entry:	other
Equipped with connectors:	yes
