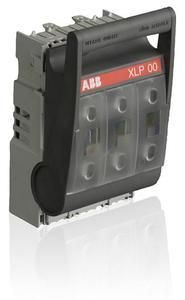

The EasyLine series from ABB has a robust, uniform design that is designed to be user-friendly. Thanks to this modern design, the series switches rated currents from 100 A - 630 A at voltages from 220 V to 690 V with ease. In addition, a high level of safety is guaranteed with protection class IP30 from the front in the closed position and protection class IP20 in the open position. ABB offers the series in 1-, 2-, 3- and 4-pole variants including a wide range of cable clamps and snap-on accessories. In addition, the devices are tested according to EN / IEC 60947-3.
| Property | Value |
| Rated continuous current Iu: | 125 A |
| Protection class (IP), front: | IP30 |
| Number of poles: | 3 |
| Design as main switch: | yes |
| Design of the actuating element: | other |
| Connection type main circuit: | Cable clamp |
| Suitable for front mounting: | no |
| Suitable for floor mounting: | no |
| With fuse monitoring: | no |
| Designed as an EMERGENCY STOP device: | no |
| Conditional rated short-circuit current Iq: | 50 kA |
| Designed as a safety switch: | yes |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Suitable for busbar construction: | yes |
| Suitable for fuse links: | NH000, NH00 |
| Position of the actuating element: | front |
| Motor drive integrated: | no |
| Motor drive optional: | no |
| Cable entry: | other |
| Equipped with connectors: | yes |
