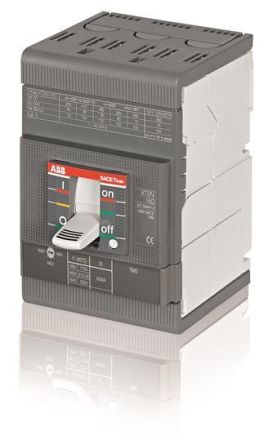

HABXT2H 125 MCP In=100 3p FF UL/CSA
HAN1SDA074889R0001
GTIN8015644788667
Connection type main circuitBolt connection
Design of the actuating elementGag
Rated continuous current Iu125A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz65kA
Rated voltage600 to 240 V
Setting range of the short-time delayed short-circuit release0.0A
Setting range of the instantaneous short-circuit release300 to 1100 A
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalYes
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorNo
With undervoltage releaseNo
Motor drive integratedNo
Motor drive optionalYes
Number of poles3
Position of the connection for main circuitIn front
IP protection)IP20
Overload release current setting0.00A
