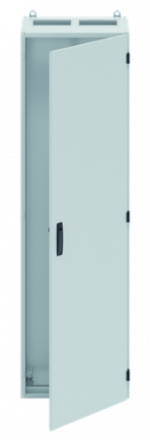

Modular cabinet, TwinLine series, empty cabinet, mounting type: surface-mounted, partially recessed, for indoor use, with door, protection class II (protectively insulated), protection type IP55, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, DIN EN 61439-3,0660-600-3, IK code 08, powder-coated, in RAL 7035, housing made of sheet steel, single-leaf door, door made of sheet steel, with standard lock double bit 3 mm, door opening angle 180 degrees, door hinge right or left, rear panel made of sheet steel, cable entry cut out at the top via flange opening, pre-stamped at the bottom via flange opening, open at the side for modular installation without disturbing webs, dimensions in mm (H x W x D): 1850 x 550 x 400, locking unit 12 RE, height 8, field width 2, space units 288, prepared for expansion with CombiLine modules on WR assembly frame or mounting plate
