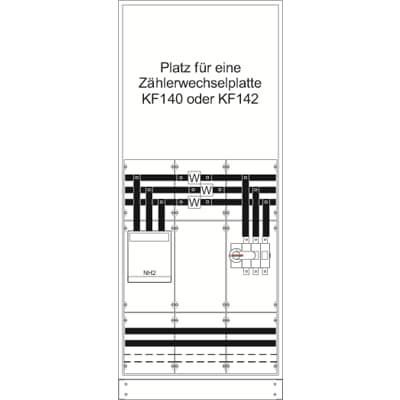

Measuring and transformer cabinet, TwinLine series, complete cabinet, with meter cross, mounting type: surface-mounted, for indoor use, with door, protection class II (protectively insulated), protection type IP55, applicable standards: DIN EN 61439-1,0660-600-1, rated current In 400 A, powder-coated, in RAL 7035, housing made of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1850 x 800 x 275, network system TN-S, 5-pole, number of meter slots single tariff 1, number of SG slots 2, number of transformer meter slots 1, including test terminal as specified by NB, intermediate terminal area wired in the access according to TAB A.5, voltage path fuse base D01/3-pole sealable, load range: busbar system Cu rails 40 x 10 mm 5-pole, disconnection point before the transformer fuse switch disconnector NH2/400 A, connection screws M12, transformer area transformer support with removable transformer tab 170 x 40 x 10 mm, Ritz: EKS 60-03, EKS 70-04, EKSO 74, MBS: EASK 31.3, EASK 31.4, EASK 31.5, EASK 41.4, EASK 41.5 (provided by NB), disconnection point after the transformer load switch 400 A / 3-pole (M10), primary wiring Cu rail 30 x 10 mm, connection N+PE (M10), locking unit 12 RE, height 8, field width 3, space units 432, covers made of plastic, sealable quick-release fastener, RAL 7035
| Property | Value |
| Number of meter slots: | 1 |
| Number of fields: | 3 |
| Height: | 1950 mm |
| Width: | 800 mm |
| Depth: | 275 mm |
| Protection class (IP): | IP55 |
| Lower connection compartment: | with busbar |
| Number of TSG slots: | 2 |
| With mounting plate: | no |
| Mounting type: | Surface-mounted |
| Installation width: | 800 mm |
| Installation height: | 1850 mm |
| Installation depth: | 275 mm |
