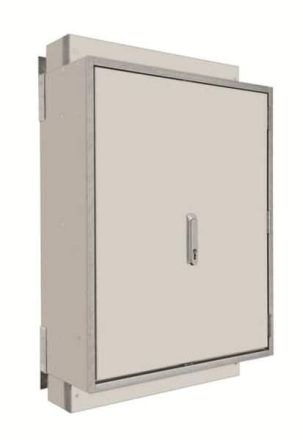

Fire protection casing, MF series, empty cabinet, mounting type: surface-mounted, for indoor use, with door, protection class II (protectively insulated), protection type IP41, building material according to A2 - non-flammable, tested according to DIN 4102-1, smoke-tight, fire resistance 30 min tested according to DIN 4102-2, fire load insulation 30 min based on DIN 4102-11, functional integrity 30 min based on DIN 4102-12, rated operating voltage Ue 400V AC 50/60 Hz, surface-coated, in RAL similar to 7035, housing made of non-flammable material, single-leaf door, door made of non-flammable material, with swivel lever with half cylinder, door opening angle 180 degrees, door hinged on the right, cable entry at the top via cable bulkhead, at the bottom via cable bulkhead, dimensions in mm (H x W x D): 898 x 648 x 312, locking unit 4 RE, height 0, field width 1, housing for mounting over existing distributor
| Property | Value |
| Height: | 1068 mm |
| Width: | 648 mm |
| Depth: | 312 mm |
| Installation depth: | 240 mm |
| Inner depth: | 240 mm |
| Protection class (IP): | IP30 |
| Protection class: | II |
| Impact resistance: | other |
| RAL number: | 7035 |
| Mounting type: | other |
| Suitable for outdoor use: | no |
| Surface protection: | other |
| Suitable for lightning protection: | no |
| Mounting option: | no |
| With mounting plate: | no |
| Number of cable entries: | 2 |
| Number of Modules: | 120 |
| Number of openings for flange plates: | 2 |
| Number of rows: | 1 |
| Type of cover: | without |
| Type of door: | Single |
| Cover design: | with cutout |
| Width in division units: | 1 |
| Functional integrity: | E30 |
| Material thickness of housing: | 72 mm |
| Material thickness of door/cover: | 72 mm |
| With lock: | yes |
| Transparent Lid/door: | no |
| Colour: | grey |
| Lid with overpressure relief: | no |
