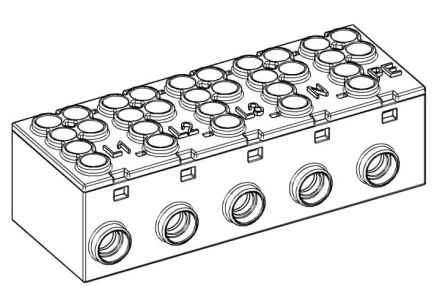

ABB Striebel & John 2CPX054070R9999 ZKH5 5-pole 2x25mm2 /1x16mm2 main line terminal

In stock

SKU: 832372

Price on request

€26.48

€0

Overview

Main line terminal 2x 25 mm2 / 1x 16 mm2, (according to DIN0603-2 version C, finger-safe) For attachment to the meter support plate, for copper conductors per pole 2 x 25 mm2 and 1 x 16 mm2, stranded In = 63 A, 5-pole, terminal points 5 x 3

Property	Value
Number of poles:	5
Rated current:	63 A
Safe to touch:	yes
Width:	104 mm
Height:	43 mm
Depth:	31 mm
Connection type:	screws
Number of inputs:	5
Number of outputs:	10
Suitable for solid conductors:	yes
Suitable for stranded conductors:	yes
Suitable for fine-stranded conductors:	yes
Suitable for fine-stranded conductors without wire end ferrules:	no
Suitable for extra-fine-stranded conductors:	yes
Suitable for extra-fine-stranded conductors without wire end ferrules:	no
