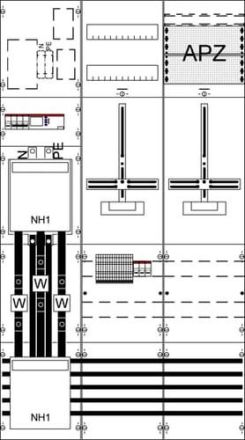

Measuring and transformer panel, complete panel, with meter cross, for indoor use, protection class IP2XC, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, rated current In 144 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 750 x 160, network system TN-S, 5-pole, number of SG positions 1, number of transformer meter positions 1, including test terminal according to NB specifications, wired according to NB specifications, voltage path 3 LS switch B10/25kA overvoltage category 3, load range: busbar system Cu bars 12 x 5 mm 5-pole, disconnection point in front of the transformer fuse switch disconnector NH1/250A, transformer area Transformer support with removable transformer tab 170 x 30 x 5 mm, Ritz: EKS 60-03, EKS 70-04, EKSO 74, MBS: EASK 31.3, EASK 31.4, EASK 31.5, EASK 41.4, EASK 41.5 (supplied by NB), separation point after the transformer NA protection with AF116 contactor, primary wiring L1-L3 Cu busbar 30 x 5 and 20 x 5, PE+N Cu busbar 20 x 5 mm, connection mains side on busbars Cu 12 x 5 mm, PV side on the contactor, PE on terminal block 50 qmm, cpl. Wiring load side, control and measuring field, locking unit 9 RE, height 5, field width 3, space units 216, plastic covers, sealable quick-release fastener, RAL 7035
