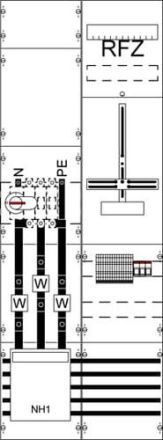

Measuring and transformer panel, complete panel, with meter cross, for indoor use, protection class IP2XC, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, rated current In 250 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, network system TN-S, 5-pole, number of transformer meter positions 1, including test terminal according to NB specifications, wired according to NB specifications, voltage path short-circuit limiting coil and fuse disconnector, 3-pole with fuse insert 10.3 x 38mm 3A, load range: busbar system Cu bars 12 x 5 mm 5-pole, disconnection point in front of the transformer fuse switch disconnector NH1/250A, Transformer area Transformer support with removable transformer tab 170 x 30 x 5 mm, Ritz: EKS 60-03, EKS 70-04, EKSO 74, MBS: EASK 31.3, EASK 31.4, EASK 31.5, EASK 41.4, EASK 41.5 (provided by NB), isolating point after the transformer load switch 250 A / 3-pole (M8), primary wiring L1-L3 Cu-bar 30 x 5 and 20 x 5, PE+N Cu-bar 20 x 5 mm, connection N+PE (M8), locking unit 9 RE, height 5, field width 2, space units 216, plastic covers, sealable quick-release fastener, RAL 7035
| Property | Value |
| Height: | 1350 mm |
| Width: | 500 mm |
| Width in modular units: | 24 |
| Design: | 1-storey |
| Connection compartment: | 300 mm |
| Number of meter spaces: | 1 |
| With wiring: | yes |
| With mounting plate: | no |
| Lower connection compartment: | with 5-pole busbar |
| Cover design: | closed with Knockout |
| Main switch rated current: | 250 A |
| Color: | grey |
| RAL number: | 7035 |
| Protection class (IP): | IP2XC |
