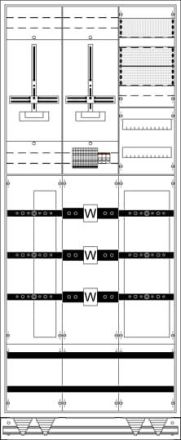

Measuring and transformer cabinet, TwinLine series, complete cabinet, with meter cross, mounting type: surface-mounted, for indoor use, with door, protection class I (earthed), protection class IP55, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, rated current In 500 A, powder-coated, in RAL 7035, housing made of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1950 x 800 x 400, network system TN-S, 5-pole, number of SG places 1, number of transformer meter places 1, including test terminal as per NB specification, wiring and test terminal as per Netze BW, voltage path 3 LS switch B10/25kA overvoltage category 3, load range: busbar system Cu rails 30 x 10 mm 5-pole, separation point in front of the transformer space for 1 fuse load strip NH1/2/3 + 1 reserve space 100 mm wide, transformer area transformer support with removable, nickel-plated transformer tab 250 x 50 x 12 mm, Ritz: EKS 79-05, EKS 95-06, EKSO 85, EKSO 105, EKSO 161, EKSO 361, EKSS 84, EKSS 85, EKSS 104, EKSS 105, EKSS 152, EKSS 352, MBS: EASK 51.4, EASK 51.6, EASK 61.4, EASK 61.6 (provided by NB), separation point after the transformer space for 2 fuse load strips NH1/2/3, PE+N rail Cu 30 x 10 mm, locking unit 12 RE, height 8, field width 3, space units 432, plastic covers, sealable quick-release fastener, RAL 7035
