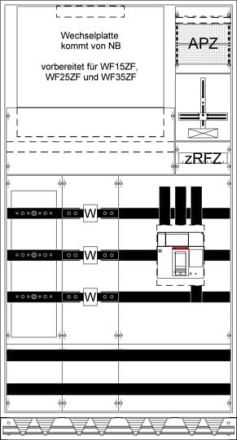

Measuring and transformer cabinet, TwinLine series, complete cabinet, mounting type: surface-mounted, for indoor use, with door, protection class I (earthed), protection type IP55, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, rated current In 800 A, powder-coated, in RAL 7035, housing made of sheet steel, double door, dimensions in mm (H x W x D): 1950 x 1050 x 400, network system TN-S, 5-pole, number of transformer meter positions 1, meter exchange plate meter exchange panel size 1/2, 2 or 3 (WF15ZF, WF25ZF, WF35ZF), space for test terminal, load range: busbar system Cu-bars 50 x 10 mm 5-pole, Disconnection point in front of the transformer, space for 2 fuse load bars NH1/2/3, transformer area, transformer support with removable transformer bracket 250 x 40 x 10 mm, Ritz: EKS 79-05, EKS 95-06, EKSO 85, EKSO 105, EKSO 161, EKSO 361, EKSS 84, EKSS 85, EKSS 104, EKSS 105, EKSS 152, EKSS 352, MBS: EASK 51.4, EASK 51.6, EASK 61.4, EASK 61.6 (provided by NB), disconnection point after the transformer, load switch 1250 A / 3-pole, PE+N rail Cu 50 x 10 mm, locking unit 12 RE, height 8, field width 4, space units 576, plastic covers, sealable quick release, RAL 7035
