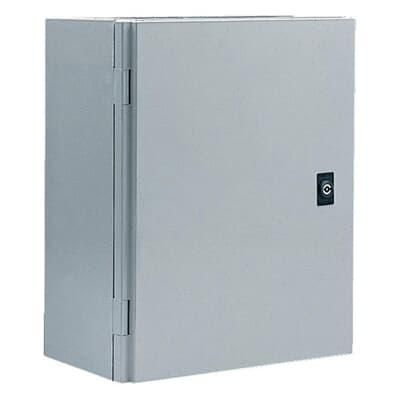

ABB Striebel & John 4TBA831035C0100 PA43 415x315x170 ARIA DPB 3mm 1-point cabinet

In stock
SKU: 777254
€120.96
Into a basketIn the basketGo

Overview

The cabinets are made of light grey (RAL 7035), dyed through, hot-pressed, glass fibre reinforced polyester. Threaded bolts are available for fastening the mounting plate and the mounting frame. ARIA cabinets offer optimum safety for both users and devices thanks to the protective insulation and the high protection class of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA43 ARIA cabinet 415x315x170 DB 1-point ARIA, double bit 3mm, 1-point lock. IP65, IK08

PropertyValue
Height:400 mm
Width:300 mm
Depth:170 mm
Inner depth:148 mm
Protection class (IP):IP66
Impact resistance:IK10
Housing material:Plastic
RAL number:7035
Mounting type:Surface-mounted
Suitable for Outdoor use:yes
Surface:untreated
Suitable for lightning protection:no
Mounting option:no
With mounting plate:no
Type of cover:door
Type of door:single
Cover design:closed
Functional integrity:without
Material thickness of housing:3 mm
Material thickness of door/cover:3 mm
With Lock:yes
Transparent lid/door:no
Color:gray
Protection class (NEMA):12

Characteristics

HABPA43 415x315x170 ARIA DPB 3mm 1-Pkts.
HAN4TBA831035C0100
GTIN5411815233913
Cultivation optionNo
Type of coverDoor
Type of doorSingles
Cover designClosed
Width300 mm
ColorGray
Functional preservationWithout
Suitable for outdoor useYes
Suitable for lightning protectionNo
Height400 mm
Internal depth148 mm
Housing material thickness3 mm
Material thickness door/lid3 mm
With mounting plateNo
With lockYes
Mounting typeSurface-mounted
SurfaceUntreated
RAL number7035
Impact resistanceIK10
IP protection)IP66
Protection class (NEMA)12
Depth170 mm
Transparent lid/doorNo
Housing materialPlastic
